Dia12x330mm HRA92.5 Tungsten Carbide Rods For Metal Milling Tools
Tungsten carbide rods produced with high temperature resistance and high hardness and toughness, widely used in PCB micro drills, for making drills, end mill reamer,taps,burrs, etc.Also suitable for cast iron, non-ferrous metals, hard wood, common wood ect.
Material Physical Features
a) Grade: YL10.2
b) Composition: 10% Co+90% WC
c) Density: 14.5g/cm3
d) Hardness: HRA 92.5
c) T.R.S.: 3800-4000N/cm2
e) Grain Size: 0.6-0.8μm
Tungsten Carbide Rod Features
- Manufactured with good quality tungsten carbide material
- Dimension: Dia10/12/14*100/150/200/330mm any length can be cut
- Tolerance: Ground h6/h7..., blank(+0.3/0.5mm) based on requirement
- Type: Solid round bar
- Performance: good wear resistance and toughness, corrosion resistance, high temperature resistance,stable chemical properties.
- Main application is for making PCB drills, drills,endmills and reamers, wear parts, and stamping dies, measuring tools.
- Anti-deformation and deflection.
- Produces tungsten carbide rods with extrusion equipment and HIP sintering furnace
- 100% inspection before shipment which garantee good quality
- Customized: accepted
Our common size models:
| Size range(DiaXL mm) | Tolerance |
| D(blank, mm) | D (ground, mm) | L(mm) |
| Dia(0.4-5)x330 | +0.3/+0.4 | h6/h7 | 0/+2 |
| Dia(6-20)x330 | +0.3/+0.6 | h6/h7 | 0/+2 |
| Dia(21-40)x330 | +0.5/1.0 | h6/h7 | 0/+3 |
| We are able to help you customized various diameter and length carbide rod |
Application Industries:
- Paper
- packaging
- printing
- Non-ferrous metal processing
- Mechanical
- Chemical
- Petroleum
- Metallurgy
- Electronic
- Defense industries
Some grade information for Reference
| Grade | Density g/cm3 | Hardness HRA(hv) | T.R.S (M Pa) | Performances &applications recommended |
| YL10.2 | 14.5 | 92.5 | 3800 | Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials. |
| YG6 | 14.9 | 89.5 | 2150 | Good Wear resistance, used for hard wood,processing original wood,aluminum section bar,brass rod and cast iron. |
| YG8 | 14.6 | 89 | 2320 | Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
| YG11 | 14.4 | 87.5 | 2260 | Medium grain, for wear parts and mining tools |
| YG15 | 14.1 | 86.5 | 2400 | Medium grain, for mining tools, cold heading and punching dies |
| YS2T | 14.45 | 92.5 | 2800 | Fine carbide,high wear resistance,high bending strength,high resistance to bonding, high thermal strength.Machining of refractory alloys, stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools |
| YNi8 | 14.6 | 88.5 | 1710 | This grade with 8% nickel binder, it has good wear resistance& corrosion resistance performance ,especially used for high pressure environmental , also good for cutting the titanium alloy. |
Other grade is also available. we also can customize composition for you.
Our advantage of tungsten carbide rod
* ISO 9001:2015 Certification
* Use 100% tungsten carbide raw material
* Advanced technology , automatic pressing , HIP sintering
* with over ten year experience
* And precision grinding
* the tolerance of polish and ground can be +0.005/-0.005mm
* Full ability to accept OEM & ODM orders
* Stringent quality control and quality consistency.
* Strict inspection for quality of raw material and finished products
Our Packing of tungsten carbide rod
1. outside packing: carton or plywood case
2. inner packing: Bubble wrap and small box
Production Process

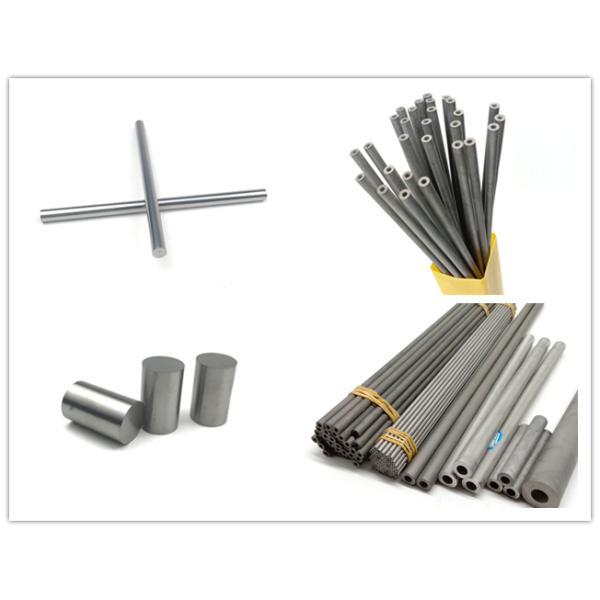

Product Show
